| Brand Name : | LJ |
| Model Number : | PAMJ-06 |
| Certification : | NFC 33-041, EN 50-483,NFC 33-042; |
| Price : | Negotiable |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Delivery Time : | 20 |
| Supply Ability : | 1000000/per month |

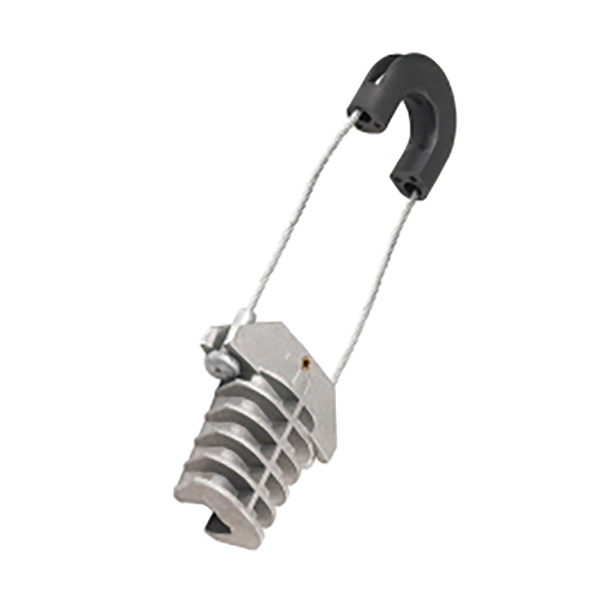

Aluminum ABC Dead End Clamps Set With A Bracket Supporting And Anchoring Clamps Aerial Cable Fitting
Aerial Cable Fitting
The Dead end clamp is designed for the installation and single anchoring of Aerial Bundled Conductors with insulated neutral messenger on poles or walls in rural and urban aerial distribution network. It comprises a bracket supporting one or two anchoring clamps.
The Dead end clamp is used to terminate 2 or 4-core of Aerial Bundle Conductor with hook fixing. Its function is to fix and tighten the insulation conductor.
• Material: the body is made of weather resistant aluminium alloy and the plastic parts of special fibreglass reinforced plastic.
• The clamp is made of high strength aluminium alloy,nylon plus fiber glass ,stainless steel.
• The clamp can be easily installed without damage to the cable insulation and also cable gripping device in insulating material ensures the double insulation of the neutral core and avoids damage to sheath ,secured parts, no tools required.
• Standard: NFC 33-041, EN 50-483,NFC 33-042.
Technical data sheet
Type | Conductor Range (mm2) |
| PAMJ-06 | 16-20 |
| PAMJ-07 | 16-25 |
| PAMJ-08 | 16-25 |
| PAMJ-09 | 16-25 |
| DRJ1400 | 50-70 |
| DRJ1500 | 50-70 |
| DRJ1600 | 50-70 |
| JBG-1 | 50-70 |
| NES J1 | 4*(16-35)mm² |
| NES J2 | 4*(50-120)mm² |
| NES J3 | 4*(25-120)mm² |
| NES J4 | 4*(95-150)mm² |
| DRJ1400 | 50-70 |
| DRJ1500 | 50-70 |
| DRJ1600 | 50-70 |
| JBG-1 | 50-70 |
| SM116 | 4*(25-35)mm² |
| SM117 | 4*(50-120)mm² |
| SM118 | 4*(50-120)mm² |
| SM157 | 2*(16-25)mm² |
| SM158 | 4*(16-25)mm² |
| SM160 | 2*(16-25)mm² |
| SM160 | 4*(16-25)mm² |
Advantage:
1, Henan Electric Power Equipment Co., Ltd Since 1985.
2, Belongs to Power China, one of the FORTUNE GLOBAL 500
3, Our customers from over 30 countries
