| Brand Name : | LJ |
| Model Number : | LJ-C |
| Certification : | ISO9001 |
| Price : | Negotiable |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability : | 1000000/per month |
| Delivery Time : | 20 |

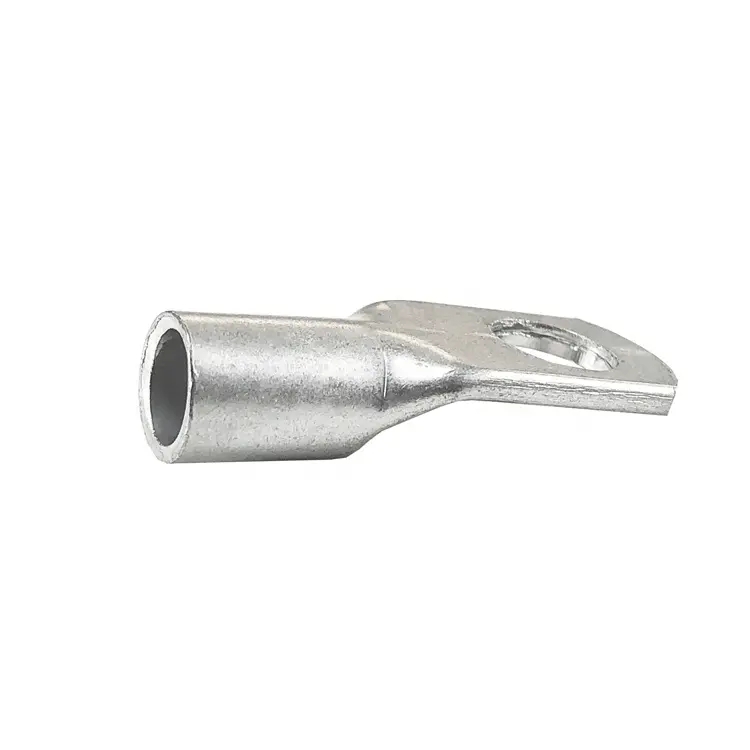

Cable Lugs are used to connect tap conductor to power equipment (transformer, circuit breaker, disconnect switch etc) or to wall bushing of substation. Connectors are also used to connect the tap conductor of T-connector. The conductors include compressive-type and bolted, both types have angle of 0°, 30°and 90° with the direction of tap conductor.
1. Material: Al
2. Surface treatment: Bright
| Type | Dimensions(mm) | |||
| L | d | B | Φ | |
| DL 16-6 | 70 | 5.8 | 16 | 6.5 |
| DL 16-8 | 70 | 5.8 | 16 | 8.5 |
| DL 25-8 | 75 | 7.2 | 17.5 | 8.5 |
| DL 35-8 | 85 | 8.5 | 20 | 8.5 |
| DL 35-10 | 85 | 8.5 | 20 | 10.5 |
| DL 50-10 | 90 | 9.7 | 23 | 10.5 |
| DL 70-12 | 100 | 11.5 | 26 | 12.5 |
| DL 95-12 | 110 | 13.5 | 28 | 12.5 |
| DL 120-14 | 120 | 15 | 31 | 14.5 |
| DL 150-14 | 125 | 16.5 | 35 | 14.5 |
| DL 150-16 | 125 | 16.5 | 35 | 17 |
| DL 185-16 | 133 | 18.5 | 37.5 | 17 |
| DL 240-16 | 140 | 21 | 40 | 17 |
| DL 300-18 | 160 | 23.5 | 44.5 | 18.5 |
| DL 300-20 | 160 | 23.5 | 44.5 | 21 |
1. The solid palm eliminates the ingress of moisture.
2. The barrels are chemically treated to reduce contact resistance and corrosion refilled with jointing compound
3. Friction welded
| Type | Dimensions(mm) | |||
| L | d | B | Φ | |
| DTL 10-6 | 62 | 4.8 | 13.5 | 6.5 |
| DTL 16-8 | 70 | 5.8 | 16 | 8.5 |
| DTL 25-8 | 75 | 7.2 | 17.5 | 8.5 |
| DTL 35-10 | 85 | 8.5 | 20 | 10.5 |
| DTL 50-10 | 90 | 9.7 | 23 | 10.5 |
| DTL 70-12 | 102 | 11.5 | 26 | 12.5 |
| DTL 95-12 | 112 | 13.5 | 28 | 12.5 |
| DTL 120-14 | 120 | 15 | 31 | 14.5 |
| DTL 150-14 | 125 | 16.5 | 35 | 14.5 |
| DTL 185-16 | 133 | 18.5 | 37.5 | 17 |
| DTL 240-16 | 140 | 21 | 40 | 17 |
| DTL 300-18 | 160 | 23.5 | 44.5 | 18.5 |
| DTL 400-20 | 170 | 27 | 50 | 21 |
| DTL 500-20 | 225 | 29 | 60 | 21 |
