Disc Suspension Glass Insulator For High-Voltage Transmission Line Electronic Accessories
Suspension Type Insulator

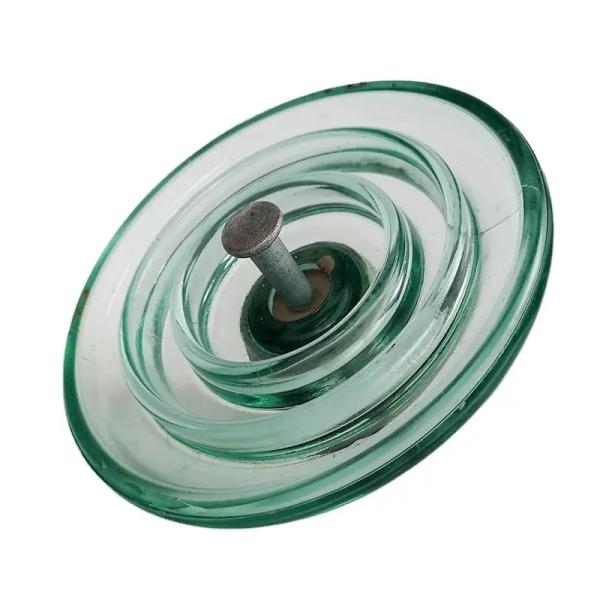

Toughened Glass 70kN 100kN 160 kN Suspension Insulator Aerodynamic
Type
Model Number: OEM
Material: glass
Insulator type:Aerodynamic glass insulator
Application: High Voltage
Usage: Insulation Protection
Color: glass
Certification: ISO9001/IEC
Sample: Sample Available
Specifications:
| IEC Type | Diametre D | Spacing H | creepage distance L | Size of coupling | mechnical failing load | power frequency Withstand voltage wet | Lighting Impulse withstand Voltage dry | impulse puncture voltage | Power frequency puncture voltage | corona test (cap & pin) | Net weight per unit | ||
| (mm) | (kN) | (kV) | (kV) | (P.U) | (kV) | (kV) | (kg) | ||||||
| U70B/146M | 380 | 146 | 365 | 16 | 70 | 45 | 90 | 2.8 | 130 | 18/22 | 5.3 | ||
| U100BP/127M | 380 | 146 | 365 | 16 | 100 | 45 | 90 | 2.8 | 130 | 18/22 | 5.2 | ||
| U1208P/127M | 380 | 127 | 365 | 16 | 120 | 45 | 90 | 2.8 | 130 | 18/22 | 5.3 | ||
| U120BP/146M | 380 | 146 | 365 | 16 | 120 | 45 | 90 | 2.8 | 130 | 18/22 | 0.4 | ||
| U160BP/146M | 420 | 146 | 380 | 20 | 160 | 50 | 95 | 2.8 | 130 | 18/22 | 7.2 | ||
| U160BP/155M | 420 | 155 | 380 | 20 | 160 | 50 | 95 | 2.8 | 130 | 18/22 | 7.2 | ||
| U210BP/170M | 420 | 170 | 380 | 20 | 210 | 50 | 95 | 2.8 | 130 | 18/22 | 7.3 | ||
| U240BP/170M | 420 | 170 | 380 | 24 | 240 | 50 | 95 | 2.8 | 130 | 18/22 | 7.5 | ||
| U300BP/195 | 450 | 195 | 450 | 24 | 300 | 50 | 95 | 2.8 | 130 | 18/22 | 10 | ||
Description:
The use of glass insulators can cancel the regular preventive test of the insulators during operation. This is because every kind of damage to the tempered glass will cause the damage of the insulator, and it is easy for the operators to find it when patrolling the line. When the insulator is damaged, the glass fragments near the steel cap and iron feet are stuck, and the mechanical strength of the remaining part of the insulator is sufficient to prevent the insulator from breaking off. The self-breaking rate of glass insulators is one of the important indicators to measure the quality of products, and it is also the quality basis for bid evaluation in the current transmission project bidding and bidding.
Disc insulators are also called suspension insulators. They are actually a piece of ceramic or glass with steel caps and iron feet at the upper and lower ends, which can be used in series.
Suspended insulators are generally made of insulating parts (such as porcelain and glass) and metal accessories (such as steel feet, iron caps, flanges, etc.) glued or mechanically clamped with glue. Insulators are widely used in power systems, generally belong to external insulation, and work under atmospheric conditions. Overhead transmission lines, busbars of power plants and substations, and external live conductors of various electrical equipment must be supported by insulators and insulated from the ground (or ground) or other conductors with potential differences.
As one of the important equipment of transmission lines, suspension insulators are responsible for the suspension of conductors and the insulation of iron towers. The suspension porcelain insulators produced are used on high-voltage, extra-high voltage and ultra-high voltage transmission lines around the world, and are used for transmission lines in various countries Safe operation provides reliable version guarantee.
Suspended porcelain insulators are divided into two types: insulators for AC systems and porcelain insulators for DC systems.
Packing and Shipping
We can choose different packing plans for different products, also can according to customers’ requirements. We deliver products to customers by sea or air, according to your needs.
Advantage:
1, Henan Electric Power Equipment Co., Ltd Since 1985.
2, Belongs to Power China, one of the FORTUNE GLOBAL 500
3, Our customers from over 30 countries
