Malleable Iron Alloy Easily Installed Suspension Clamp Overhead Line Fittings
Overhead Line Fittings
The suspension clamp is designed for the installation and suspension of cables or conductors on the towers or poles.
• The clamp body and keepers are malleable iron,cotter-pins are stainless steel.the other parts are steel, all ferrous parts are hot-dip galvanized.
• The clamp can be easily installed without damage to the cables or conductors;
• Standard: IEC 61284-1997

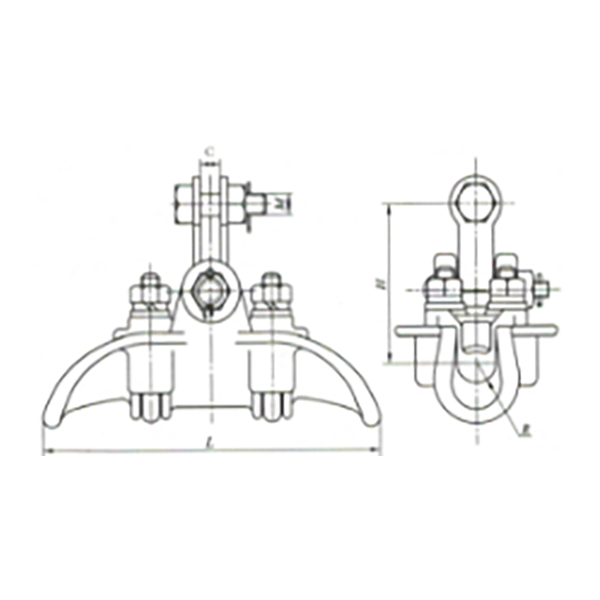

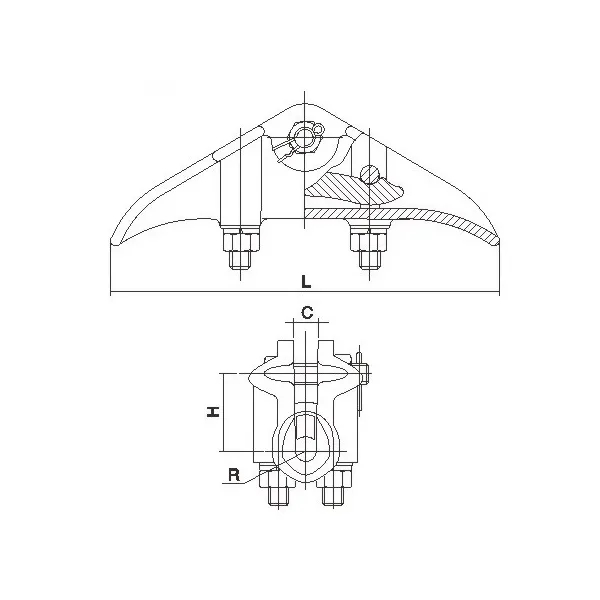

Technical data sheet
Catalog No. | mm) | (mm) Dimensions | (kN) Rated Failure Load | kg) Weight | ||||
| h | L | R | C | M | ||||
| XGU-1 | 5.0-7.0 | 82 | 180 | 4.0 | 18 | 16 | 40 | 1.4 |
| XGU-2 | 7.1-13.0 | 82 | 200 | 7.0 | 18 | 16 | 40 | 1.8 |
| XGU-3 | 13.1-21.0 | 102 | 220 | 11.0 | 18 | 16 | 40 | 2.0 |
| XGU-4 | 21.1-26.0 | 110 | 250 | 13.5 | 18 | 16 | 40 | 3.0 |
| XGU-5C | 23.0-33.0 | 87 | 300 | 17.0 | 22 | 18 | 60 | 4.7 |
| XGU-6C | 34.0-45.0 | 118 | 350 | 23.0 | 48 | 24 | 70 | 7.9 |
| XGU-7C | 45.0-48.7 | 121 | 350 | 26.0 | 48 | 24 | 70 | 8.9 |
| XGZ-4009M | 5.0-7.0 | 82 | 180 | 4.0 | 18 | 16 | 40 | 1.4 |
| XGZ-4014M | 7.1-13.0 | 82 | 200 | 7.0 | 18 | 16 | 40 | 1.8 |
| XGZ-4022M | 13.1-21.0 | 102 | 220 | 11.0 | 18 | 16 | 40 | 2.0 |
| XG-4022 | 13.2-22.0 | 210 | 20 | 11 | 120 | 16 | 40 | 2.9 |
| XG-4028 | 19.6-28.0 | 250 | 20 | 14 | 130 | 16 | 40 | 3.5 |
| XG-4034 | 27.4-34.0 | 280 | 20 | 17 | 130 | 16 | 40 | 4.0 |
| XG-6028 | 19.6-28.0 | 250 | 20 | 14 | 130 | 16 | 60 | 3.5 |
| XG-6034 | 27.4-34.0 | 300 | 20 | 17 | 130 | 16 | 60 | 4.0 |
| XG-6040 | 32.0-40.0 | 300 | 20 | 20 | 135 | 16 | 60 | 4.8 |
| XG-6046 | 36.8-46.0 | 330 | 20 | 23 | 135 | 16 | 60 | 5.4 |
| XG-8034 | 27.4-34.0 | 300 | 20 | 17 | 130 | 16 | 80 | 4.8 |
| XG-8040 | 32.0-40.0 | 300 | 20 | 20 | 140 | 16 | 80 | 5.0 |
| XG-8046 | 36.8-46.0 | 330 | 20 | 23 | 140 | 16 | 80 | 5.8 |
| XG-8054 | 43.2-54.0 | 345 | 20 | 27 | 150 | 16 | 80 | 7.0 |
Advantage:
1, LJ Brand Since 1985, a professional power fittings solution brand
2, Belongs to Power China, one of the FORTUNE GLOBAL 500
3, Our customers from over 30 countries
